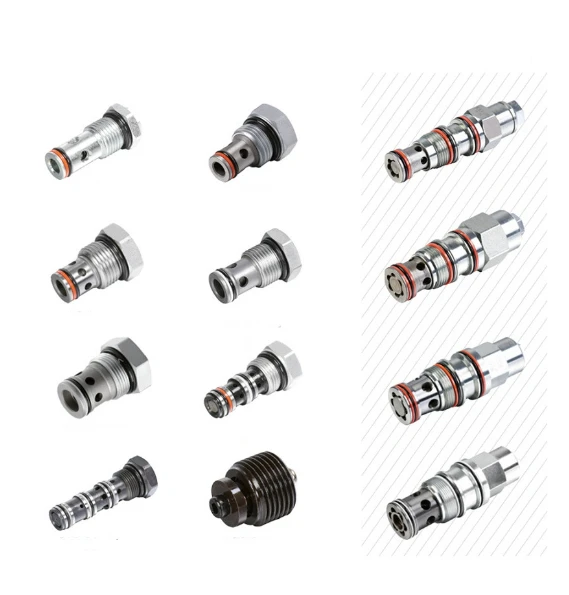

Hydraulic Valve CWEALHN Hnub Ci Series ValveCWEALHN

SUN Counterbalance Valve CWEALHN Txoj Haujlwm Kev Ua Haujlwm: SUN Counterbalance Valve nrog Pilot Pab Qhib nrog Sab Nraud Port Hom Counterbalance Valve yog siv los tswj cov khoom thauj. Nws tso cai rau unidirectional dawb ntws ntawm roj los ntawm lub directional valve (chaw nres nkoj 2) mus rau lub load chaw nres nkoj (chaw nres nkoj 1), thaum lub direct-acting, SUN pilot-pab nyem valve muaj nuj nqi tswj cov dej ntws los ntawm qhov chaw nres nkoj 1 mus rau qhov chaw nres nkoj 2. Tus pilot pab. ntawm qhov chaw nres nkoj 3 txo qhov kev teeb tsa muaj txiaj ntsig zoo ntawm kev ua haujlwm nyem los ntawm coefficient ntawm kev txiav txim ntawm tus tsav piv. Txij li thaum lub caij nplooj ntoos hlav chamber txuas nrog rau qhov chaw nres nkoj sab nraud (chaw nres nkoj 4), lub siab rov qab hauv qhov chaw nres nkoj 2 tsis cuam tshuam rau qhov chaw valve. Lub valve no tseem hu ua lub zog tswj valve lossis tshaj-center valve.
-Qhov teeb tsa tus nqi ntawm SUN counterbalance valve yuav tsum yog tsawg kawg 1.3 npaug ntawm tus nqi thauj khoom siab.
-Tig qhov kev hloov kho clockwise yuav txo qhov teeb tsa thiab txo qhov siab.
Flow peev 30 gpm 120 L / min.
Pilot piv 3:13:1
Pom zoo Load Siab ntawm Qhov Siab Tshaj Plaws 3075 psi215 bar
Qhov siab tshaj plaws zui teeb tsa 4000 psi280 bar
Factory default setting 2 in³/min. 30cc / min.
Kev xau siab tshaj plaws thaum rov qab los rau lub rooj zaum 5 tee / min.0, 3 cc / min.
Unidirectional qhib siab 25 psi1,7 bar
Adjustment-Tig counterclockwise nce teem counterclockwise. 55
Cov yam ntxwv ua haujlwm Standard
