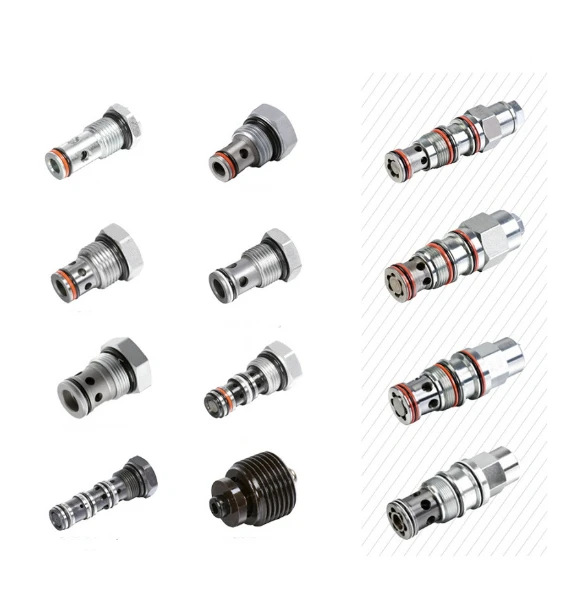

Sun Series Cartridge Hydraulic Valve CBAALHN
Khoom Specification
PRODUCT SPECIFICATIONS
|
Tsis muaj |
Yam khoom |
Cov ntaub ntawv |
|
1 |
Daim ntawv thov |
Kev siv tshuab |
|
3 |
Hom kev lag luam |
Cov khoom qub |
|
4 |
Keeb kwm |
Zhejiang, Suav teb |
|
5 |
Warranty |
1 Xyoo |
|
6 |
Khoom npe |
SUN Hydraulic Valve |
|
7 |
Tshooj naj npawb |
CBAALHN |
|
8 |
qhov loj |
Txheem loj |
|
9 |
MOQ |
1 Pcs |
Lwm yam qauv.
| CKCB-XCN | CXHA-XAN | PRDL-LSN | CBBC-LHN |
| CKEA-XAN | CKED-XAN | CKEB-XAN | CKEC-XAN |
| RPKC-LWM | RBAA-KEN | RDDA-LAN | CBLA-LHN |
| CXEE-XCN | CNAD-XCN | RPCC-LAN | RPEC-LAN |
| RPGC-LAN | RPIC-LAN | RPEE-LAN | RPGE-LAN |
| RPIE-LAN | RDDA-LAN | RDBA-LAN | RVCD-LAN |
| RDFA-LAN | RDHA-LAN | RBAC-LAN | RBAA-LAN |
| PEB-LAN | PBDB-LAN | PEB-LHN | RPEC-LAN |
Counterbalance li qub nrog kev pab tsav tsheb yog txhais tau tias los tswj kev ua haujlwm dhau. Lub check valve pub dawb ntws los ntawm lub directional valve (chaw nres nkoj 2) mus rau lub load (chaw nres nkoj 1) thaum lub direct-acting, pilot-pab nyem valve tswj ntws los ntawm qhov chaw nres nkoj 1 mus rau qhov chaw nres nkoj 2. Pilot pab ntawm qhov chaw nres nkoj 3 txo qhov chaw zoo. ntawm lub valve nyem ntawm tus nqi txiav txim los ntawm tus tsav piv.
Lwm lub npe rau lub valve no suav nrog lub zog tswj valve thiab tshaj-center valve.
Counterbalance li qub yuav tsum tau teem tsawg kawg yog 1.3 npaug ntawm qhov siab tshaj plaws load induced siab.
Kev txwv li qub tsis muaj peev xwm pab tau lwm yam tshaj li cov thermal nyem.
Tig kev hloov kho clockwise kom txo qhov chaw thiab tso tawm load.
Kev teeb tsa tag nrho ntawm lub moos yog tsawg dua 200 psi (14 bar).
Backpressure ntawm qhov chaw nres nkoj 2 ntxiv rau qhov kev daws teeb meem zoo ntawm qhov sib piv ntawm 1 ntxiv rau qhov piv txwv piv rau lub backpressure.
Reseat tshaj 85% ntawm kev teeb tsa siab thaum lub valve yog txheej txheem teeb tsa. Kev teeb tsa qis dua tus qauv teeb tsa siab tuaj yeem ua rau qis dua qhov feem pua reseat.
Sun counterbalance cartridges tuaj yeem ntsia tau ncaj qha rau hauv kab noj hniav hauv lub tsev actuator rau kev tiv thaiv ntxiv thiab txhim kho qhov tawv nqaij hauv Circuit Court.
Ob daim tshev valve cracking pressures muaj. Siv 25 psi (1,7 bar) kos tshwj tsis yog tias tus actuator cavitation yog ib qho kev txhawj xeeb.
Lub valve no muaj cov ntsaws ruaj ruaj ntawm txhua qhov chaw nres nkoj.
Tag nrho 3-chaw nres nkoj counterbalance, load tswj, thiab pilot-to-open check cartridges yog lub cev sib hloov tau (piv txwv li tib txoj kev khiav, tib kab noj hniav rau ib tug ncej loj).
Corrosion-resistant cartridge li qub yog npaj rau siv nyob rau hauv corrosive ib puag ncig thiab raug txheeb xyuas los ntawm tus qauv code suffix / AP rau sab nraud stainless hlau Cheebtsam, los yog / LH rau sab nraud zinc-nickel plated Cheebtsam. Saib qhov CONFIGURATION rau txhua qhov kev xaiv. Yog xav paub ntxiv, thov mus saib cov ntaub ntawv ntawm Kev Tsim Kho nplooj ntawv nyob rau hauv TECH RESOURCES.
Koom nrog lub hnub ntab style kev tsim kho kom txo tau qhov muaj peev xwm ntawm cov khoom siv sab hauv khi vim kev teeb tsa ntau dhau torque thiab / lossis kab noj hniav / cartridge machining variations.
